From the field to the enterprise, on a single unit.
EdgeKinect Core runs directly on the gateway. It collects data from LoRaWAN and Modbus devices, stores and visualizes it locally, then forwards it to your SCADA systems, third-party tools, and EdgeKinect Vision — no cloud dependency required.
From Field Sensors to Enterprise Systems
EdgeKinect connects remote LoRaWAN sensors directly into enterprise IT, OT, and cloud platforms. Field data is securely ingested, normalized, and streamed into SCADA, SolarWinds, and industrial networks using SNMP, Modbus, DNP3, Sparkplug, MQTT, and HTTP APIs — while simultaneously delivering telemetry to AWS SNS, Azure Service Bus, InfluxDB, and analytics and visualization platforms.

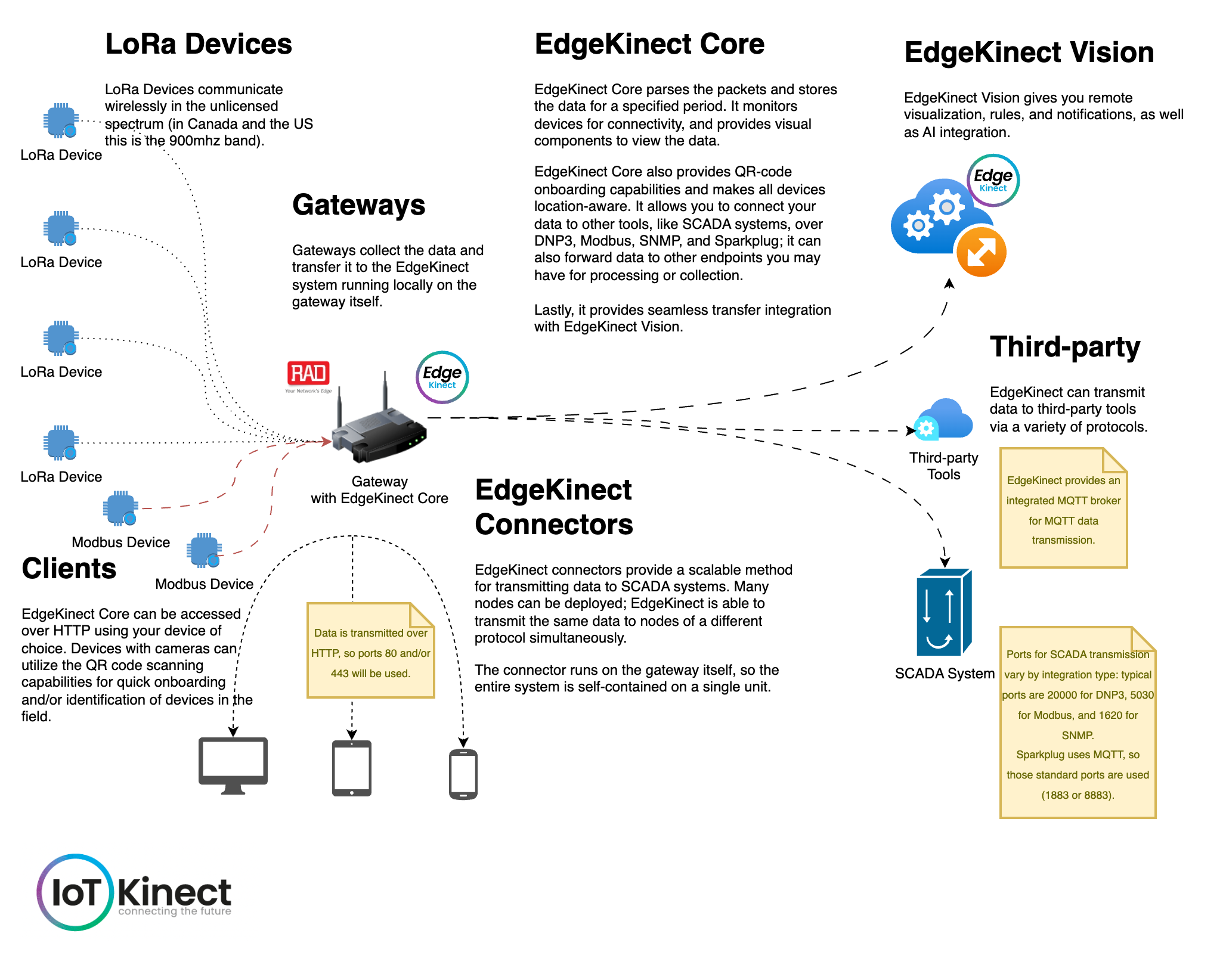

The whole system, end to end.
Devices in the field feed a single gateway running EdgeKinect Core, which forwards their data to every system downstream.
Collect
LoRaWAN sensors transmit wirelessly over the unlicensed 900 MHz band; wired Modbus devices connect directly. The gateway gathers it all in the field.
Process locally
EdgeKinect Core parses packets, stores them in a time-series database, monitors connectivity, and brokers data over MQTT — all on the gateway itself.
Distribute
The same normalized stream is pushed out concurrently to every system you run — over industrial protocols or HTTP, with no cloud dependency.

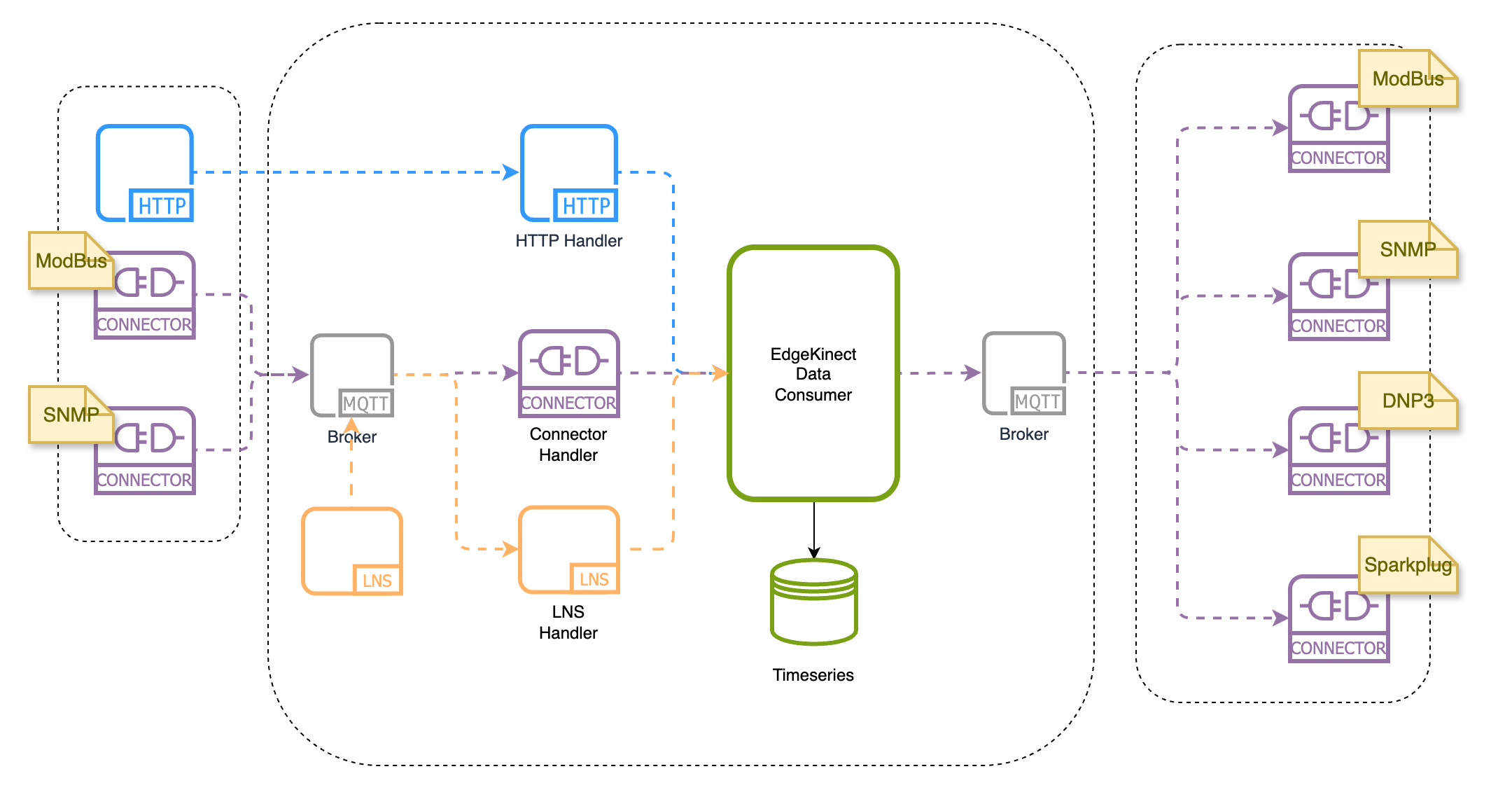

How data moves through Core.
A single ingestion path feeds an internal broker that fans out to outbound connectors — Modbus, DNP3, SNMP and Sparkplug — while the same data is written to the time-series store.
Engineered for the edge.
Self-contained
The full pipeline — ingest, store, visualize, forward — runs on a single gateway unit.
No cloud dependency
Everything operates on your local network. Cloud is optional, never required.
Concurrent protocols
Run many outbound connectors at once, even of different protocols, simultaneously.
Field-ready
Connectivity monitoring, QR onboarding and location-aware devices, built in.
Default ports by integration.
DNP3
SCADA outstation
Modbus
SCADA / PLC
SNMP
IT monitoring
Sparkplug
MQTT · plain / TLS
HTTP / HTTPS
Clients & Vision
