Industrial IoT
Data Engine
for the Field.
Bridges LoRaWAN sensors, legacy serial protocols, and enterprise systems — running on hardware from compact ARM gateways to full enterprise servers.
Inbound
CORE
Connectors
Integrated with leading industrial platforms
- Ignition SCADA
- Esri ArcGIS
- Autosol
- SolarWinds
- PRTG
- Nagios
- RAD Networks
- LoRa Alliance
- AVEVA
- Total Flow
- Inductive Automation
- DNP3 Protocol
- Ignition SCADA
- Esri ArcGIS
- Autosol
- SolarWinds
- PRTG
- Nagios
- RAD Networks
- LoRa Alliance
- AVEVA
- Total Flow
- Inductive Automation
- DNP3 Protocol
Not a concept — a console already running.
Every site, gateway, connector and device in one place. Map LoRaWAN sensors to Modbus, DNP3, Sparkplug B or SNMP — then watch them go live.
Everything your field teams need to operate at the edge.
From raw LoRaWAN ingestion to enterprise protocol output — all running on-site, without cloud dependency.

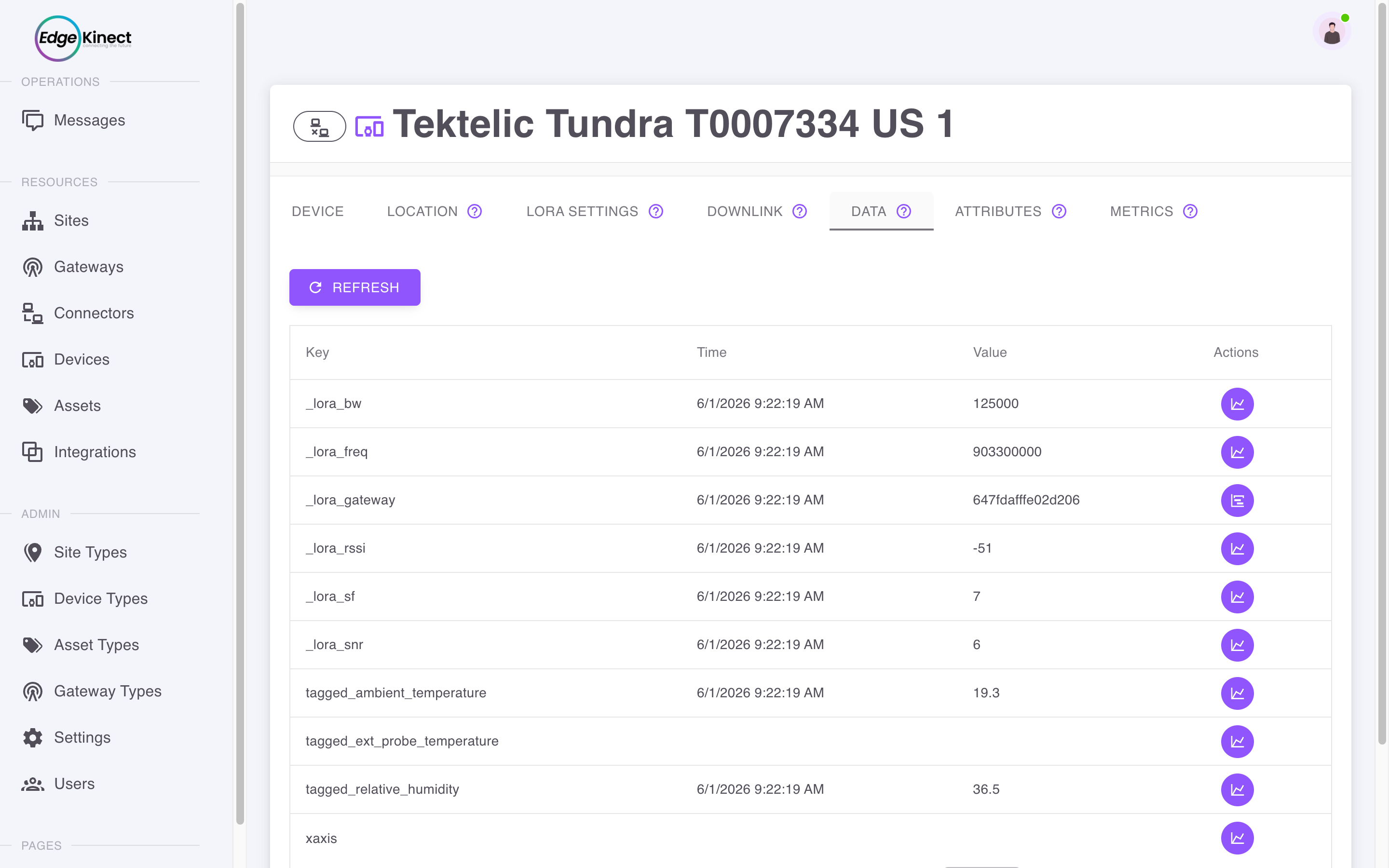

Data Capture & Storage
Ingest LoRaWAN sensor data into an on-device time-series database with fully configurable retention. Visualize by date range and export as CSV.
- LoRaWAN ingestion to time-series DB
- Configurable storage retention
- Date-range visualization & CSV export

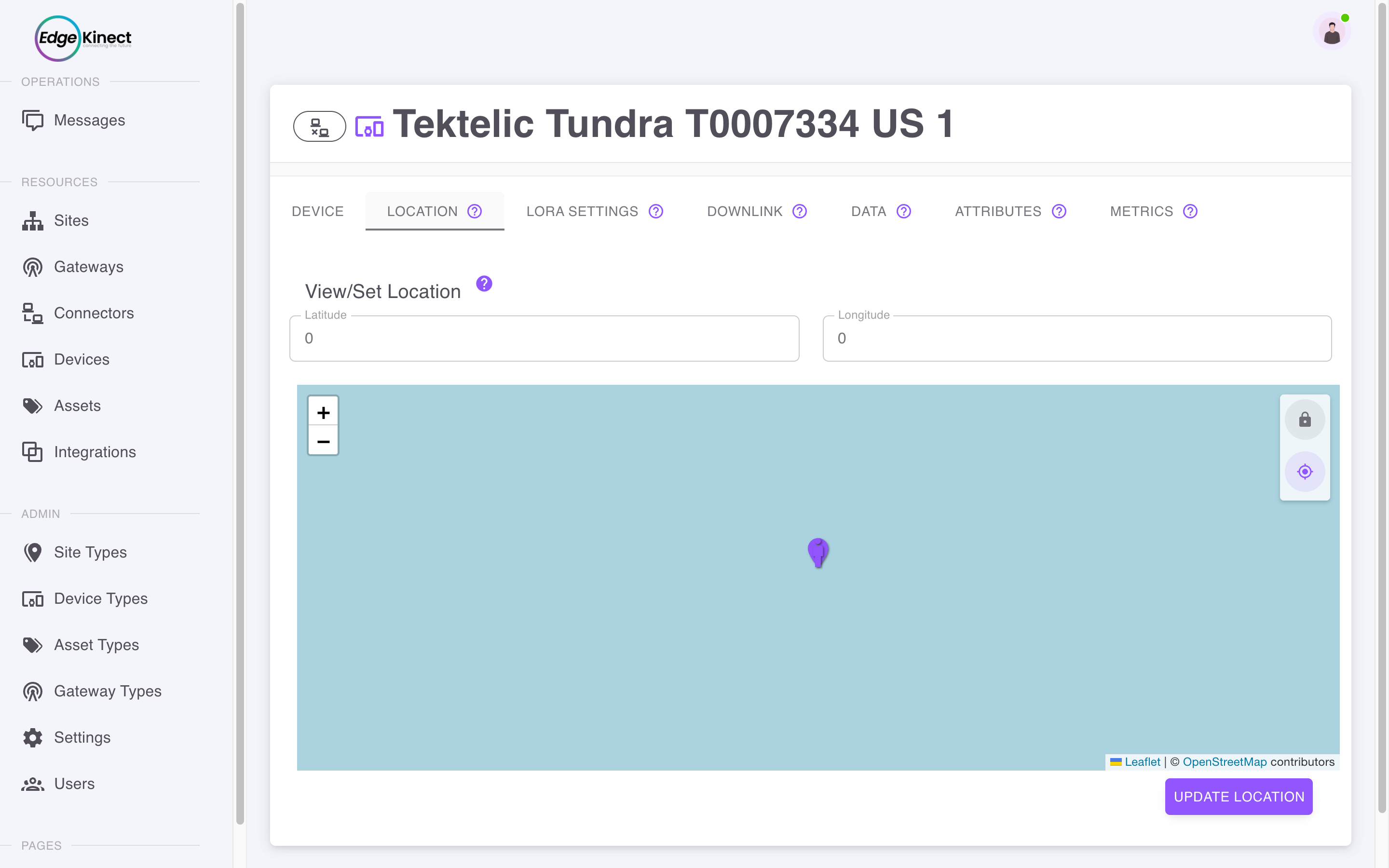

Location Awareness
GPS-based positioning for devices, gateways, assets, and sites — no internet required. Only a local network connection to Core is needed.
- GPS-based positioning
- Works offline (local network only)
- Manual or mobile GPS input

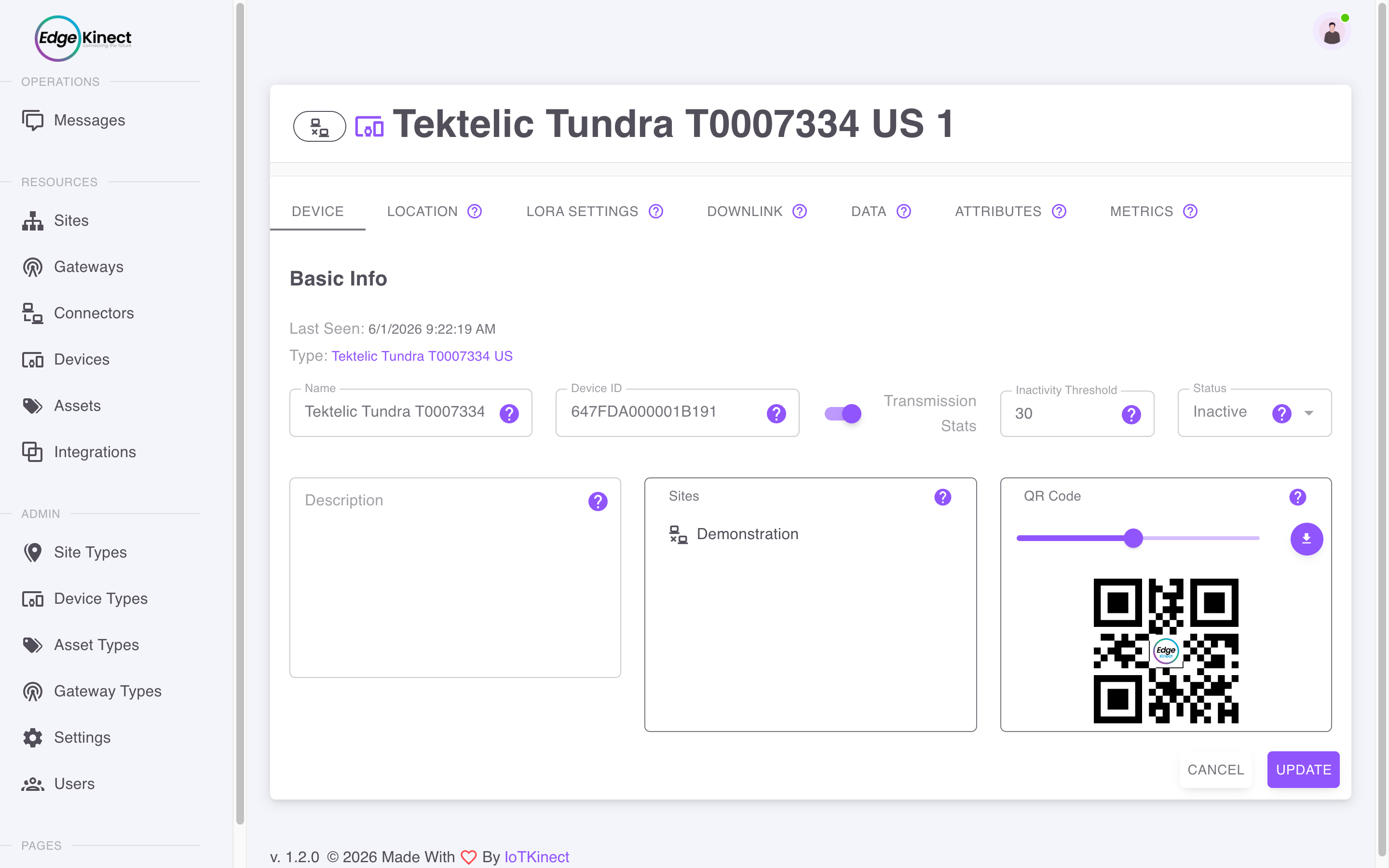

QR Code Support
Read and generate QR codes for devices, assets, gateways, and sites. Core auto-detects device EUI on LoRaWAN QR code scan to accelerate onboarding.
- Read & generate QR codes
- Device EUI auto-detection on scan
- Accelerated field onboarding

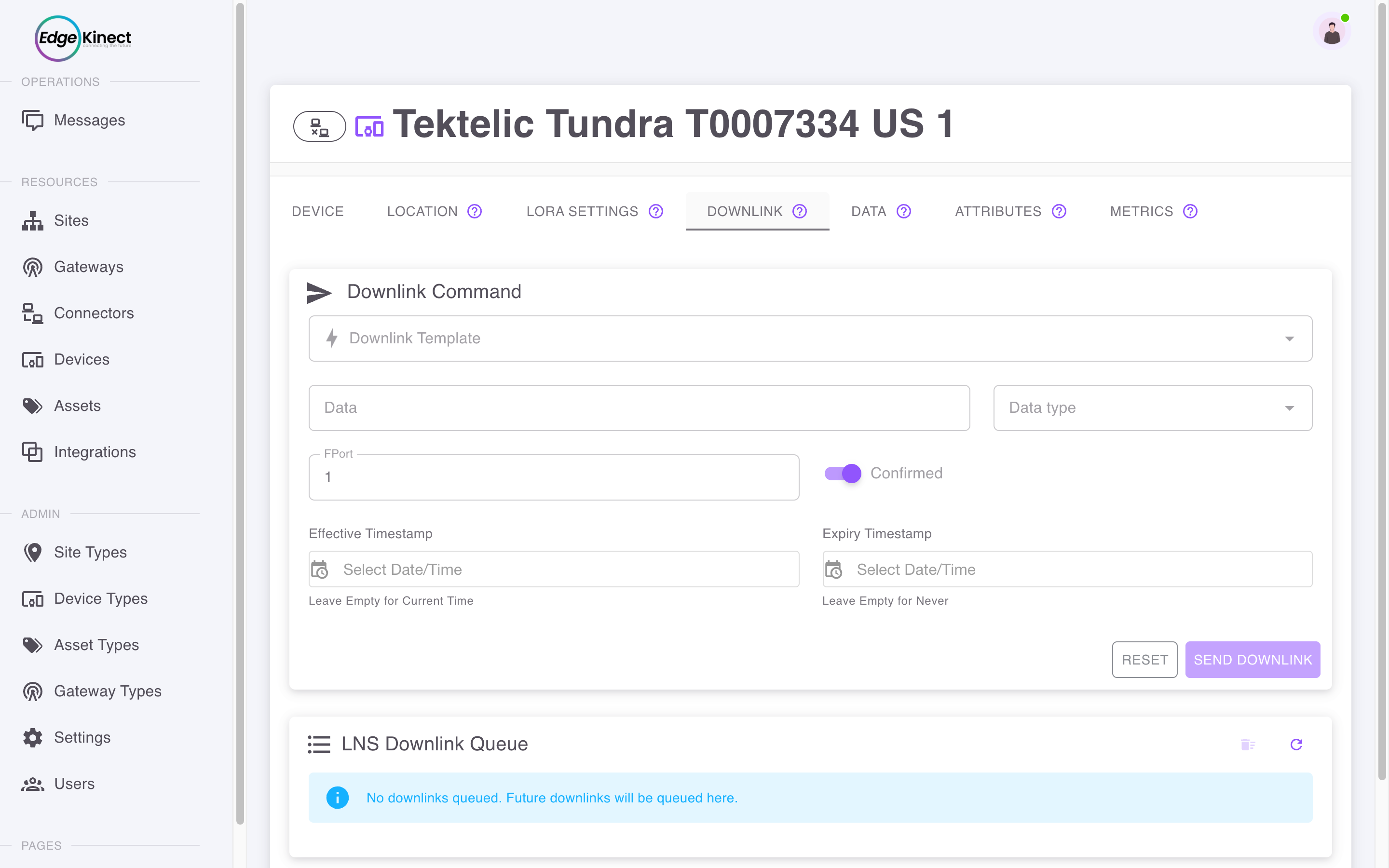

Automated Device Config
Auto-send predefined settings to devices on first network join. Pre-approve vendor-specific downlinks and field technician shortcuts — no manual config required.
- Auto-downlinks on first join
- Vendor-specific parameters & intervals
- Field personnel shortcuts

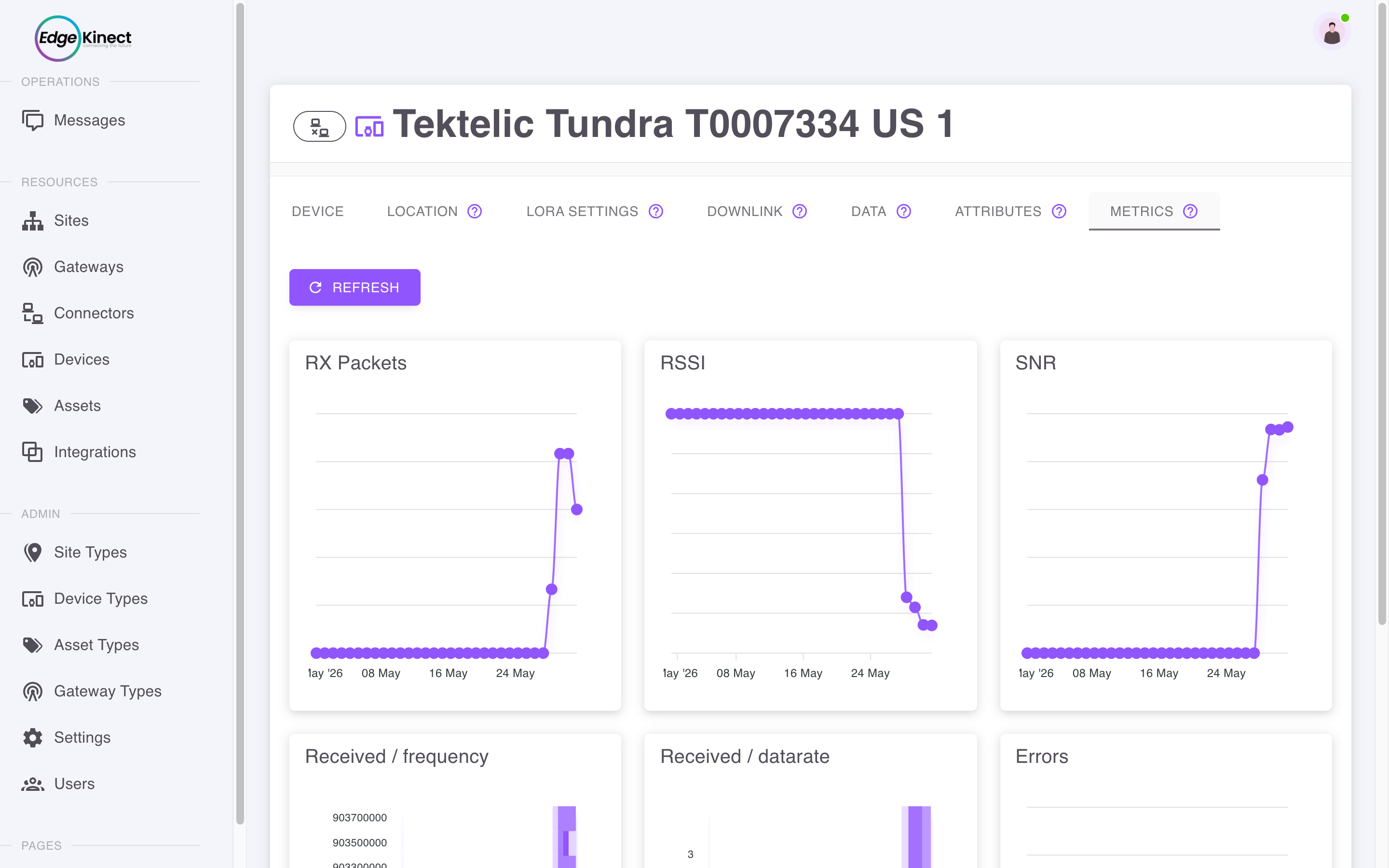

Field Connectivity Monitoring
Live device connectivity status visible directly from the field. Monitor gateway reception quality in real time without leaving the job site.
- Real-time device status UI
- Gateway reception quality
- Field-accessible monitoring
Concurrent Outbound Connectors
Run multiple outbound protocol connectors simultaneously on a single Core instance. Six output protocols including Modbus, DNP3, SNMP, Sparkplug B, ArcGIS, and raw JSON.
- 6+ output protocols supported
- Concurrent connectors per instance
- RESTful time-series API
Centralized control for every deployment.
A single pane of glass across all Core nodes — from remote tunneling to key provisioning and network services.
CoreNode-01
Upstream Station
CoreNode-02
Pump House B
CoreNode-03
Remote Wellhead
CoreNode-04
Compressor Yard
Multi-Node Dashboard
At-a-glance view of all active and inactive gateways, devices, assets, and sites across every managed Core node.
Remote Node Tunneling
Tunnel directly into any Core node for remote inspection — no separate VPN required.
Centralized Key Repository
Single source of truth for all device keys, app keys, and EUIs. Bulk import via CSV.
Broker
MQTT :1883
Integrated MQTT Broker
All Core nodes point to a single Manager-hosted MQTT broker. Pre-configured for Ignition SCADA.
Manager SSO
Single sign-on into any Core node. Local fallback login ensures uninterrupted field access.
Runs from the edge to the enterprise.
Core adapts to your infrastructure — from compact ARM gateways to full enterprise servers.
Edge / ARM
Compact, low-power ARM hardware deployed directly at the field site. Minimal footprint, maximum reliability.
Enterprise Server
Full enterprise infrastructure with vertical and horizontal scaling. Supports multiple concurrent Core instances.
Connects with your industrial stack.
From LoRaWAN ingestion to enterprise SCADA output — EdgeKinect plugs directly into the tools your team already uses. No rip-and-replace, no middleware tax.
LoRaWAN
InboundNative ingestion from any LNS — ChirpStack, TTN, AWS.
Modbus TCP / RTU
I/ORead & write to PLCs and legacy serial gear.
DNP3
I/OOutstation & master support for utility SCADA.
Sparkplug B
OutboundPublish unified namespace data over MQTT.
SNMP
OutboundEmit traps and expose MIBs to network monitors.
JSON / REST API
OutboundRESTful time-series API for any custom consumer.
Esri ArcGIS
GISStream geolocated assets into your GIS layer.
Ignition SCADA
SCADADrop-in source for Inductive Automation tags.
AVEVA / Wonderware
SCADAForward to AVEVA historians and dashboards.
SolarWinds · PRTG · Nagios
NMSAlert ops teams via standard NMS pipelines.
Autosol · Total Flow
O&GBridge to oil & gas measurement platforms.
RAD Networks
NetworkingIndustrial cellular & ruggedised backhaul gear.
Everything you need to know.
Common questions about EdgeKinect Core, Manager, and deployment.
