LoRaWANFCC

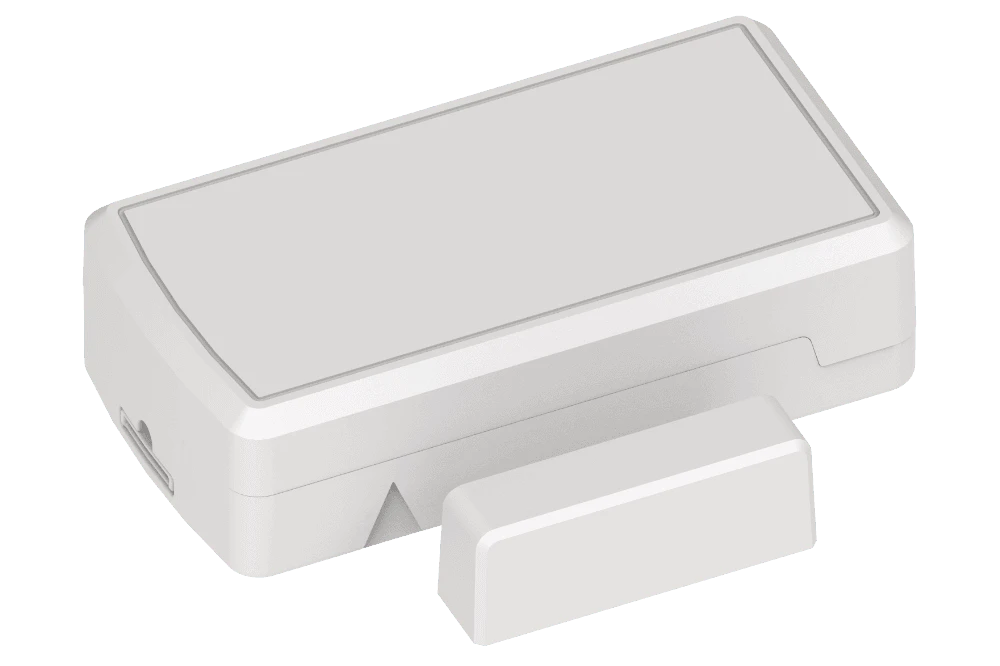

MultiTech RBS301-DWS-US LoRaWAN Door/Window Sensor

The MultiTech RBS301-DWS-US is a LoRaWAN door/window sensor using a magnet to detect open/close events for indoor use. With long range, over-the-air configuration and up to 10 years from a single CR123A cell, it works with any LoRaWAN network.

Smart BuildingSecurityRetail

Manufacturer: MultiTech

MultiTech RBS301-DWS-US LoRaWAN Door/Window Sensor

Key Features

Discover what makes the MultiTech RBS301-DWS-US LoRaWAN Door/Window Sensor stand out

Magnetic Open/Close

Detects proximity of a magnet to report open and close events with customizable timing.

Long Range & Penetration

Best-in-class RF performance with long range and strong penetration through walls and floors.

Over-the-Air Config

Configure before and after installation, with automatic error reporting via supervisory messages.

Up to 10 Years Battery

Advanced power management on a single user-replaceable CR123A battery.

Sensor Types

Capabilities of this sensor

Contact Sensor
Magnetic Field Detection

Specifications

Technical details for MultiTech RBS301-DWS-US LoRaWAN Door/Window Sensor

Measurements

TypeDoor/Window magnetic proximity sensor (indoor)
OutputOpen/Close states with customizable timing threshold
Detection Distance10-15 mm

Wireless

ProtocolLoRaWAN compliant
RegionUS/Canada, US915 (902-928 MHz)

Physical

Dimensions71.37 x 37.08 x 19.05 mm
EnclosureABS plastic, IP30, indoor rated
Operating Temp-40 C to +50 C

Power

Battery1 x CR123A, user replaceable, up to 10 years

* Specifications are subject to change without notice. Please refer to the manufacturer's documentation for the most up-to-date information.

Applications

Discover how MultiTech RBS301-DWS-US LoRaWAN Door/Window Sensor can transform your operations

Commercial Property

Open/close monitoring for doors and windows in commercial buildings and facilities.

Retail & Restaurants

Door and access monitoring for retail stores and restaurants.

Secure Storage

Cabinets, lock boxes and fridge/freezer doors using a magnet for close-proximity detection.
